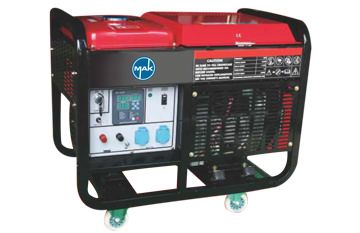

Diesel Twin Cylinder Generator
- Powered by 20hp twin-cylinder diesel engine.
- Deluxe style with square frame.
- Wheels contribute to easy moving.
- Electric start with battery.
| Twin-Cylinder Diesel Generator | ||
|---|---|---|
| Model | MDG5000L(E) | MDG6000L(E) |
| Voltage (V) | 110 ~ 240 | 380/220, 400/230 |
| Frequency (Hz) | 50/60 | |
| Rate. AC output (kW) | 10/10kW | 12.5/12.5KVA |
| Maximum AC output (kW) | 11/11kW | 13.75/13.75KVA |
| DC output (V) | 12 | |
| Engine Model | M290 | |
| Starting System | Electric | |
| Displacement (cc) | 954 | |
| Engine Speed (rpm) | 3000/3600 | |
| Oil Capacity (L) | 3 | |
| Fuel tank capacity (L) | 25 | |
| Fuel consumption (L/hr) | 4.83 | |
| Noise (7 meters away) dB(A) | <= 82 | |
| Dimension (LxWxH) (mm) | 910x578x800 | |
| Net Weight (electric) (kg) | 170 | 174 |
