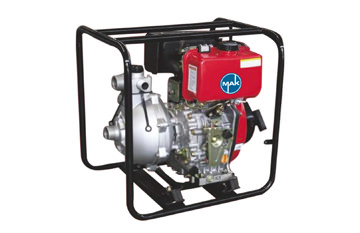

Diesel High Pressure Pump
- Powered by air-cooled 4-stroke diesel engine.
- Maximum pressure: 0.55Mpa.
- Maximum discharge head ranges from 55-75m.
- Capacity ranges from 12-40m3/hr.
- CE approved.
| Diesel High Pressure Pump | |||||
|---|---|---|---|---|---|
| Model | MDF40C | MDF40C-2 | MDF50C | MDF50C-2 | MDF80C |
| Inlet (inch) | 1.5 | 2 | 3 | ||
| Outlet (inch) | 1"x2, 1.5"x1 | 2"x1 | 3"x1 | ||
| Maximum Capacity (m3/hr) | 17 | 12 | 23 | 20 | 40 |
| Maximum discharge head (m) | 55 | 75 | 55 | 75 | 65 |
| Self-priming time (s/4m) | 30 | ||||
| Maximum Suction head (m) | 8 | ||||
| Engine model | M178FP | M186F | |||
| Fuel tank capacity (L) | 3.5 | ||||
| Dimension (LxWxH) (mm) | 540x440x540 | 645x475x605 | |||
| Net Weight (recoil) (kg) | 45 | 47 | 45 | 47 | 62 |
